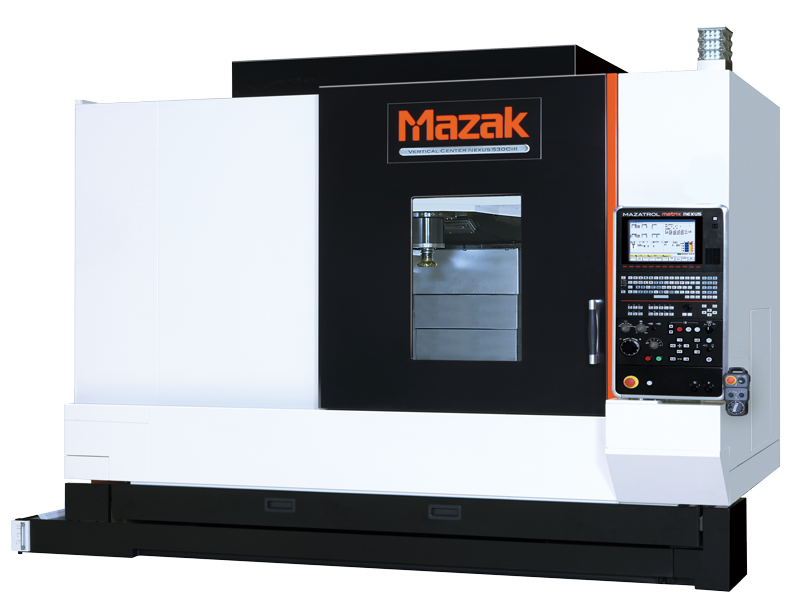

VERTICAL CENTER NEXUS 530C-II HS
MACHINE DESCRIPTION:
The VERTICAL CENTER NEXUS 530C-II HS Vertical Machining Center combines advanced technology, productivity and value for a wide variety of applications. The High Speed (HS) configuration, is built with more productivity-enhancing features than any other vertical in its class. Equipped with the Mazatrol Matrix Nexus CNC, this control provides conversational or EIA programming, giving the capability and productivity necessary for today's technology driven shops.
As an (HS) configuration, the machine features a high-speed spindle package.
MACHINE CHARACTERISTICS:
- Performance enhancing Intelligent Machine features
- Mx Roller Guide Technology on all axes
- Ergonomic control swings for easy operator viewing
- High accuracy and productivity for a variety of industry applications
- Easy integration of articulated robots for process automation
機床參數
| Specification | Values | |
|---|---|---|
| 加工能力 | 工作臺長度（左右） | 1300 mm / 51.180 in |
| 工作臺寬度（前后） | 550 mm / 21.650 in | |
| 主軸 | 主軸錐度 | 40 |
| 最大轉速 | 18000 rpm | |
| 電機功率 (15 分鐘額定) | 30 kw / 40.0 hp | |
| 刀庫 | 刀具數量 | 30 |
| 進給軸 | 行程(X軸) | 1050 mm / 41.34 in |
| 行程(Y軸) | 530 mm / 20.87 in | |
| 行程(Z軸) | 510 mm / 20.08 in | |
