MACHINE DESCRIPTION:

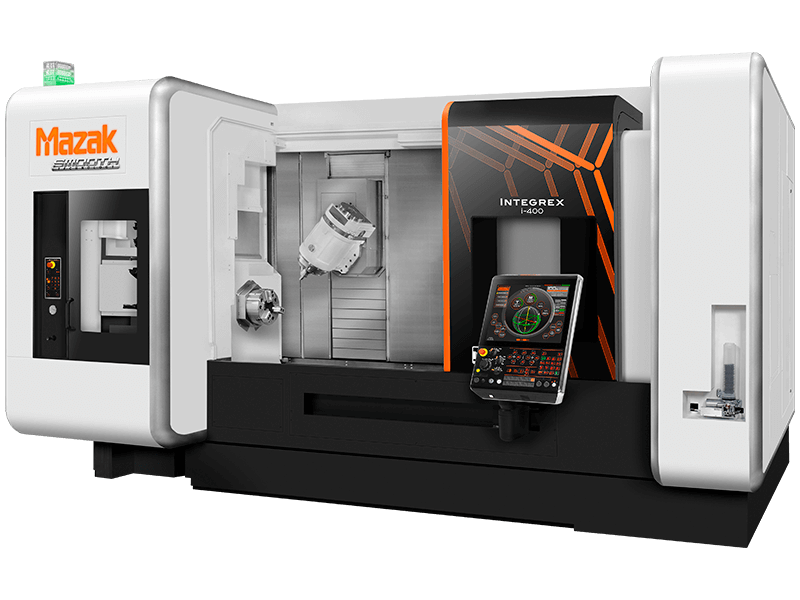

INTEGREX i-400ST advanced Multi-Tasking machine delivers maximum versatility and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for Done-In-One machining and lower turret (T) - minimizing fixtures, tools, handling and non-cut time.
Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed work), round parts, or sculptured parts such as aerospace components.
MACHINE CHARACTERISTICS:
- Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
- Optional 20k RPM (15 HP) milling spindle available
- Full C-axis contouring (.0001 degree minimum index)
- Productive second turning spindle for Done-In-One part processing
- Added lower turret for machining at either main or second turning spindle
- Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
- 36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
機床參數
| Specification | 中心距 - 1500U in | |
|---|---|---|
| 加工能力 | 最大回轉直徑 | 658 mm / 25.91 in |
| 最大加工直徑 | 658 mm / 25.910 in | |
| 最大棒材加工能力 (受卡盤影響) | 102 mm / 4.0 in | |
| 最大加工長度 | 1519 mm / 59.800 in | |
| 主軸 | 卡盤尺寸 | 12 in |
| 最大轉速 | 3300 rpm | |
| 電機功率 (30 分鐘額定) | 30 kw / 40.0 hp | |
| 第二主軸 | 卡盤尺寸 | 10 in |
| 最大轉速 | 4000 rpm | |
| 電機功率 (30 分鐘額定) | 26 kw / 35.0 hp | |
| 銑削主軸 | B軸行程 | 240° |
| 刀庫容量 | 36 | |
| 最大轉速 | 12000 rpm | |
| 電機功率 (40 ED Rating) | 22 kw / 30 hp | |
| 進給軸 | 行程(X軸) | 615 mm / 24.21 in |
| 行程(X2軸) | 230 mm / 9.06 in | |
| 行程(Y軸) | 260 mm / 10.24 in | |
| 行程(Z軸) | 1585 mm / 62.40 in | |
| 行程(Z2軸) | 1388 mm / 54.65 in | |
| 行程(W軸) | 1574 mm / 61.97 in | |
