MACHINE DESCRIPTION:

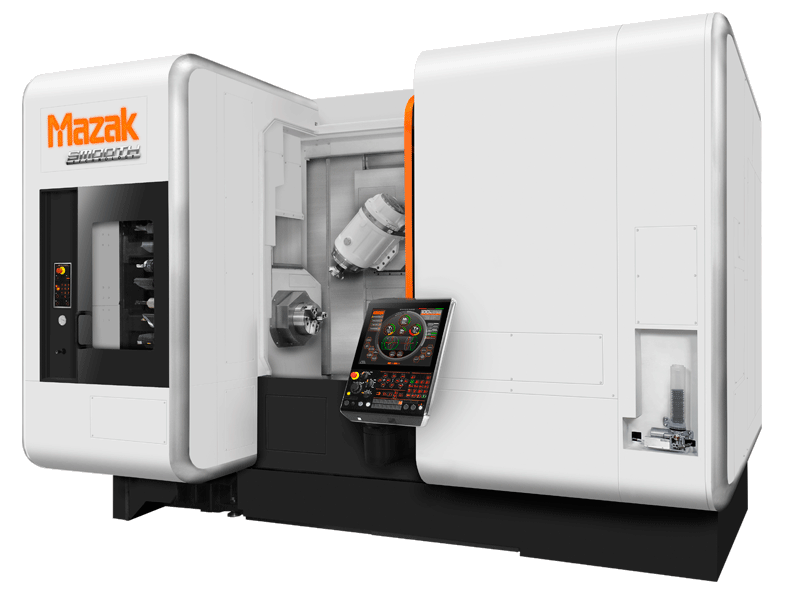

INTEGREX i-200S advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for Done-In-One machining and works to eliminate multiple setups, fixtures, tools, handling and non-cut time. Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups.
With full 5-axis capability, the machine easily processes round parts with secondary operations, fully prismatic parts from solid or castings (chucked or bar fed work), or highly contoured sculptured parts.
MACHINE CHARACTERISTICS:
- Powerful main turning spindle
- Productive second turning spindle for Done-In-One part processing
- Milling spindle with Y-axis travel and B-axis rotation
- ATC changes both fixed turning and rotary tools
- 36-tool ATC standard - 72-tool capacity available
- Easy bar feeder or gantry loader integration for system automation
機床參數
| Specification | 中心距 - 1000U in | |
|---|---|---|
| 加工能力 | 最大回轉直徑 | 658 mm / 25.91 in |
| 最大加工直徑 | 658 mm / 25.910 in | |
| 最大棒材加工能力 (受卡盤影響) | 65 mm / 2.6 in | |
| 最大加工長度 | 1011 mm / 39.800 in | |
| 主軸 | 卡盤尺寸 | 8 in |
| 最大轉速 | 5000 rpm | |
| 電機功率 (30 分鐘額定) | 22 kw / 30.0 hp | |
| 第二主軸 | 卡盤尺寸 | 8 in |
| 最大轉速 | 5000 rpm | |
| 電機功率 (30 分鐘額定) | 19 kw / 25.0 hp | |
| 銑削主軸 | B軸行程 | 240° |
| 刀庫容量 | 36 | |
| 最大轉速 | 12000 rpm | |
| 電機功率 (20 ED Rating) | 22 kw / 30 hp | |
| 進給軸 | 行程(X軸) | 615 mm / 24.21 in |
| 行程(Y軸) | 260 mm / 10.24 in | |
| 行程(Z軸) | 1077 mm / 42.40 in | |
| 行程(W軸) | 1066 mm / 41.97 in | |
