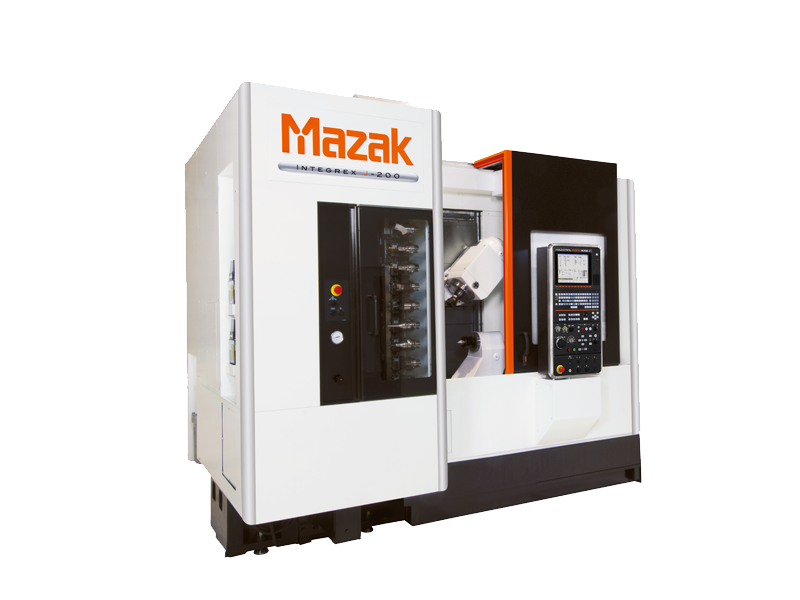

INTEGREX j-200
MACHINE DESCRIPTION:
Designed to provide maximum value, the INTEGREX j-200 provides an option for increasing processing flexibility while offering a cost-effective alternative for those seeking accurate turning, and angular milling capability. In addition to automatic tool changing, a large machining area, and convenient operation – the j-series fills the demand for a robust, multi-tasking machine to deliver on a wide variety of production requirements.
MACHINE CHARACTERISTICS:
- Versatile Mill Spindle indexing (B-axis) -30 ~ 190 degrees
- High-speed, high-torque milling spindle
- Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
- Large true Y-axis design
- Large tool magazines to reduce setup time
- Programmable NC tailstock
- Multiple bed lengths available: 20" or 40”
機床參數
| Specification | 中心距 - 500Uin | 中心距 - 1000Uin | |
|---|---|---|---|
| 加工能力 | 最大回轉直徑 | 530 mm /20.87 in | 530 mm / 20.87in |
| 最大加工直徑 | 500 mm /19.690 in | 500 mm /19.690 in | |
| 最大棒材加工能力 (受卡盤影響) | 65 mm / 2.6 in | 65 mm / 2.6 in | |
| 最大加工長度 | 500 mm /19.690 in | 1016 mm /40.000 in | |
| 主軸 | 卡盤尺寸 | 8 in | 8 in |
| 最大轉速 | 5000 rpm | 5000 rpm | |
| 電機功率 (30 分鐘額定) | 11 kw / 15.0hp | 11 kw / 15.0 hp | |
| 銑削主軸 | B軸行程 | 220° | 220° |
| 刀庫容量 | 20 | 20 rpm | |
| 最大轉速 | 12000 rpm | 12000 rpm | |
| 電機功率 (20 ED Rating) | 4 kw / 5 hp | 4 kw / 5 hp | |
| 進給軸 | 行程(X軸) | 450 mm /17.72 in | 450 mm / 17.72in |
| 行程(Y軸) | 200 mm / 7.87in | 200 mm / 7.87in | |
| 行程(Z軸) | 550 mm /21.65 in | 1066 mm /40.00 in | |
| 行程(W軸) | 478 mm /18.82 in | 968 mm / 38.11in | |
